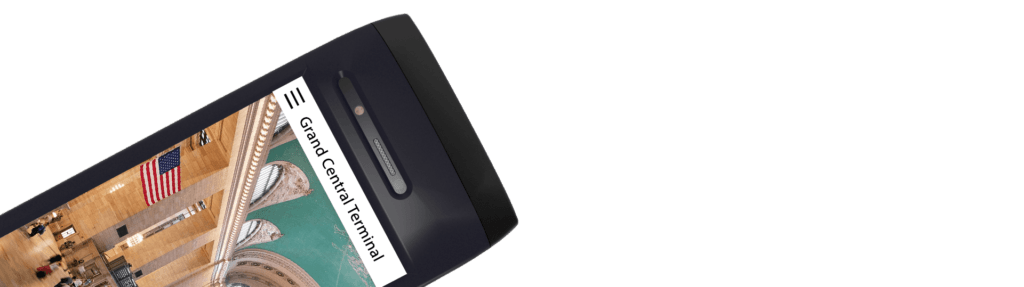

Orpheo Touch

Augmented Reality Multimediaguide


Orpheo Touch landscape & portret

Progressive technology

  • Large range and highly accurate
  • Automatic activation of media
  • Video synchronization
  • Anti-theft system
  • 2 infrared receivers

Improved Reality

  • The best Android experience
  • 9-axis navigation sensors
  • Compass
  • Gyroscope
  • Accelerometers

Discover Orpheo’s high-end Ar multimediaguide

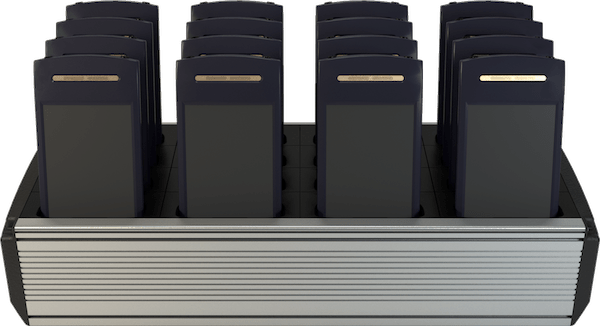

Orpheo Touch is a state-of-the-art digital companion. Building on their previous guide system, the Touch combines the performance of an efficient smartphone with the robustness of an audio guide. It has a high-resolution colour screen and a clear, intuitive touchscreen interface. Orpheo has succesfully simplified the on-site management of the fleet of devices, making distribution and collection of devices easier than ever with the Orpheo EMM. The tours are interactive and fun: audio commentary, enriched texts, HD images, videos, 3D reconstructions, augmented reality, virtual tours, games, indoor and outdoor geo-located maps, video synchronisation… and much more.

Orpheo Touch Multimedia Guide 2 hoofdtelefoonaansluitingen
Orpheo Touch landscape & portret

Orpheo Touch Multimedia Guide offers 3 experiences:

  • Earphone output recommended for museum or indoor tours
  • Bottom speaker primarily used for outdoor locations and national parks

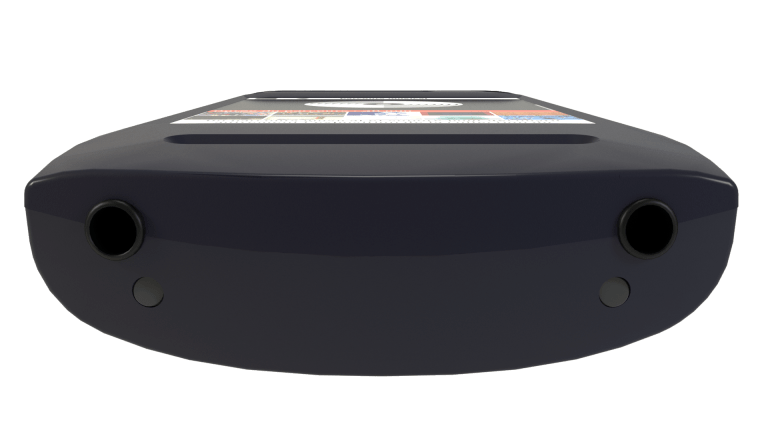

  • Dual headphone jack on the same device
Orpheo Touch in gebruik

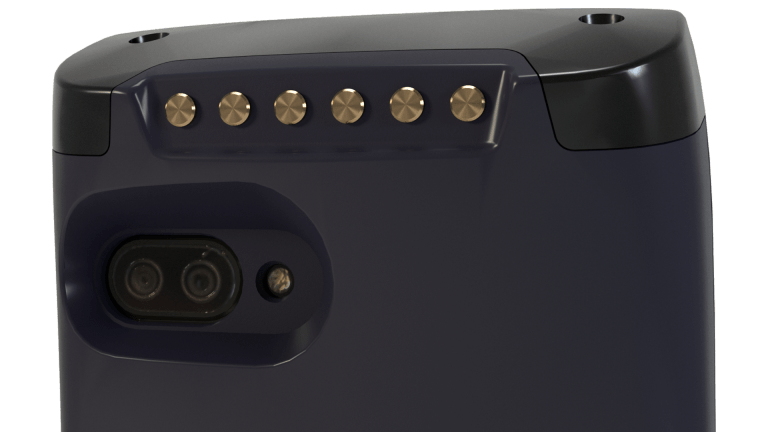

smart charging

The Touch charging connector is designed based on over 25 years of research in manufacturing audio guide system designs. The connector ensures a high mechanical grip and a fast charging speed (10 W). For this reason, the device can be fully charged in less than 3 hours, providing a high turnover rate for museum staff.Technology for fast charging
Orpheo Touch

Smart batterymanagement

Orpheo Touch landscape & portret

There is another reason why the Orpheo Touch Multimedia Guide is fantastic. The internal energy manager of the Touch optimizes the performance and lifespan of the battery. Thanks to our custom functionality, the battery life is significantly extended, especially when compared to other commercial products, even after 500 charging cycles. The battery has a capacity of 4000 mAh and provides a maximum battery life of up to 50 hours with a travel guide app.

Orpheo Touch Multimedia Guide and safety

Safety is an essential component, especially in public environments. The Orpheo Touch incorporates 8 safety checkpoints:

  • Temperature protection and short-circuit security
  • ESET protection
  • Input overvoltage protection
  • Output overvoltage protection
  • OTG protection
  • Output overload protection
  • Battery TCO protection.
  • Multitouch IPS 5.45″ high resolution display 720*1440
  • 1 Camera: 13 megapixels – Autofocus – wide angle lens 120°
  • GPS, WIFI, Bluetooth, accelerometer, gyroscope, compas, infrared
  • 2 Integrated Loudspeakers
  • 2 stereo audio jacks 3.5 mm
  • ABS Shock Resistant and Fireproof casing
  • Li-Polymer Battery 4000 mAh Battery
  • Androïd 8 or newer
  • Length: 19 cm
  • Width: 7.7 cm
  • Depth: 1.7cm
  • Weight: 196 gram
  • Length: 45cm
  • Width: 19.6 cm
  • Depth: 9cm
  • Weight: 2.5 kg
